Monitoring Battery Banks:
Use The NetGuardian F4's Fiber Interface For SNMP Reporting...

Monitor Your Battery Banks With SNMP via Fiber with the NetGuardian F4...

How This Application Works:

Equipment Used:

NetGuardian F4 Battery Banks Fiber Connection

The NetGuardian Fiber 4 Alarm unit is perfect for use in Battery Bank Monitoring. This application integrates the perfect balance of alarm notification, LED visibility and the ability to take advantage of a 10/100 LAN connection or a 100Base FX Fiber interface to report alarms via SNMP. The fiber interface coupled with the opto isolated alarms creates a remote that works in very harsh conditions.

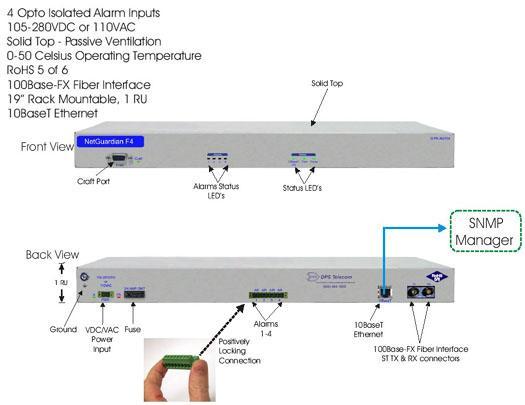

Specfications for the NetGuardian F4:

• 1 RU, 19"
• Flexible power source; 105 - 280 VDC so it can work with your 125 & 250 nominal voltages as well as 110VAC in your lab environment
• Passive cooling (No Fan) and no vents on top
• 4 optically isolated (Fail open default) with isolated wetting voltage of at least 12VDC. 2 pins brought out per each alarm
• Flexible LAN connectivity, use one of the following: 100BaseFX interface (ST connectors, multimode fiber, 62.5 micron) OR 10BaseT LAN
• Locking alarm & power connectors located on the rear of the unit
• Reports SNMP to multiple masters
• LED alarm status, LAN & Fiber status, PWR indicators on the front of the unit
• Firmware Downloadable
• 0 to 50c operating range
• RoHS 5 of 6 Compliant

---

Give Us a Call!

To find out more about this and other DPS applications, give us a call at our toll-free number and talk to one of our network specialists. They'll help you put together a perfect fit solution for your network!
