Monitoring Motorola Quantar Radios using SNMP
 |
| Monitoring Motorola Quantar Radios using SNMP |
How This Application Works:
| Equipment Used: |
|
The NetGuardian Q8 will integrate seamlessly into your existing Quantar Radios for SNMP reporting. The unit will be very easy to install as it will mate directly with the 50-pin Amphenol port on the radio and be secured by the bolt previously used to secure the small antenna unit on the rear of the unit. The Amphenol plug will be self-aligning by virtue of the NGD-Q8 using the same mounting tabs as the current antenna relay module. The antenna module will mount on the topside of the NGD-Q8 using the same bolt.
The NGD-Q8 supports up to 8 alarms that are brought in through the 50-pin amphenol ports. Also coming through that same amphenol will be the 13.8 VDC that powers the unit. The unit is protected with its own fuse. This way you will have monitoring as long as the radio is powered.

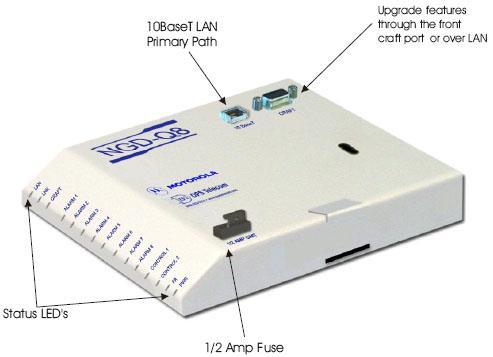

The primary function of the NGD-Q8 is to collect alarms from the Quantar and convert them to SNMP. However, because the unit has individual LED's for each alarm point, you also gain the benefit of local alarm monitoring on the rear of the radio. The LED display also contains status / diagnostic information on the LAN, craft port, relays and power. The front side of the NGD-Q8 hosts two connectors. The first is an RJ45 LAN interface. The second is a DB9 craft port used for quick and easy access for diagnostic and monitoring purposes.
There will be a TTY interface, but its scope will be limited to displaying alarms status, unit diagnostics and setting the IP address. The TTY interface will be accessible from the craft port and via telnet. There will also be Web Browser that will allow convenient access to the alarm status by anyone (with security access rights) who wishes to browse to the unit. The advantages of this is: faster and easier to use, centralized database, LAN / craft port downloadable.
We strive to exceed your expectations through teamwork, innovation, and a commitment to customer satisfaction. The NetGuardian Q8 is the best possible solution for integrating alarm monitoring into your platform that will give you the visibility you require. It integrates with and compliments the QUANTAR to such a degree it will appear as though it is a "factory" option.
Give Us a Call!
To find out more about this and other DPS applications, give us a call at our toll-free number and talk to one of our network specialists. They'll help you put together a perfect fit solution for your network!
 |
 |
 |
|---|
