Radio Tower Site Alarm Echo Application via RS232 Overhead
 |
| Radio Tower Site Alarm Echo Application via RS232 Overhead |
How This Application Works:
| Equipment Used: |
|

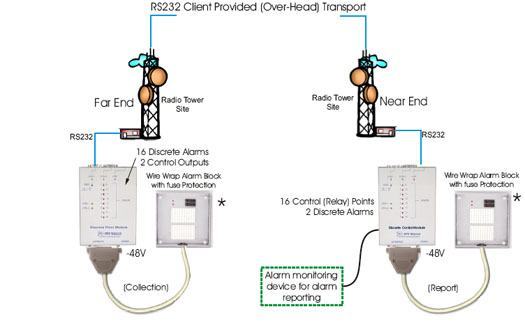

This solution will fulfill your need to detect contact closures at your remote site and replicate those at your central site over a dedicated RS232 connection (not dialup). When the DPM detects a discrete alarm, it will then send that alarm via RS232 to the DCM. You can use a discrete monitoring device (such as the NetGuardian) to monitor the contacts of the DCM for alarm reporting.
The optional wire wrap termination blocks allow for easier alarm termination to the DPM and DCM.
The DPM has a capacity of 16 discrete inputs, and 2 control outputs. The 16 discrete inputs allow you to monitor 16 different environmental conditions. You can monitor such things as commercial power, door entry violation, room temperature etc. Anytime a fault alarm is detected; the DPM’s built in RS232 will communicate over your provided RS232 channel to the DCM and trigger a specific contact relay (discrete).
The DCM is the opposite in that it has 16 control outputs and 2 alarm inputs. Both the DPM & DCM are software programmable.
In this application, the DPM’s & DCM’s have been equipped with a dedicated RS232 interface. The units are in continuous communications with each other, so they can transport the alarm conditions within a few seconds. An error indication is also provided should the communication link fail.
In echo mode the DPM will communicate over a RS232 line to your Discrete Control Module (DCM). The DCM relays operate when the DPM detects an alarm, providing 16 contact-closures that follow the alarm inputs point-for-point. Likewise, the DCM’s two alarm inputs operate the two respective relays at the DPM. This is especially useful in converting alarms between systems with unlike protocols or for transporting alarms from small remote sites to large, centrally located remotes or enunciator panels.
Both DPM models can be used in the echo mode application and they will be powered a –48V supply.
Give Us a Call!
To find out more about this and other DPS applications, give us a call at our toll-free number and talk to one of our network specialists. They'll help you put together a perfect fit solution for your network!
 |
 |
 |
|---|
