NetGuardian Remote Status Panel Overview

Remote Status Panel NetGuardian Remote Status Panel: Relays alarm status information from NetGuardian to external alarm displays and alarm speakers.

The NetGuardian Remote Status Panel lets you monitor alarms from wherever needed. If your NetGuardian RTU is in in a remote site or a secure location, you can mount this unit on the wall in a location where it can be monitored.

Provide local visibility of your NetGuardian alarms in an economical space saving package with the NetGuardian Remote Status Panel. With the ability to monitor all of your alarms the Remote Status Panel gives you quick visual or audible diagnosis of alarms as they happen. With the Remote Status Panel you'll know that an alarm has been tripped the second it happens.

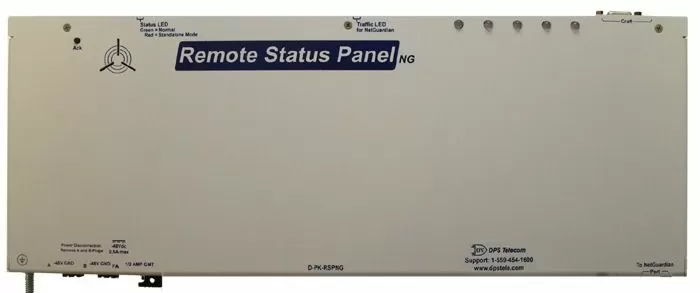

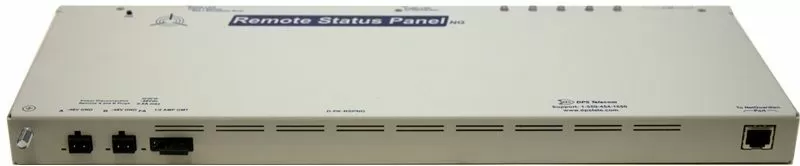

Remote Status Panel
The NetGuardian Remote Status Panel provides remote NetGuardian monitoring with 5 bi-color LEDs.
Full Specifications
Dimensions: 6.136" H x 17" W x 1.2" D
(15.5 cm x 43.2 cm x 3.05 cm)
Mounting: Wall Mount
Power Input: Dual -48 VDC
Fuse: 1/2 Amp GMT
Interfaces: 1 RJ45 RS232 port
1 DB9 Craft port
Visual Interface: 5 bicolor (red and green) NetGuardian status LEDs
2 Remote Status Panel NetGuardian status LEDs
Unit Controls : Visible/Audible display toggle switch
Local ACK button
Audible Notification: Alarm speaker with ACK (momentarily silence) button
Operating Temperature: 35-140 deg F (2 -60 degrees C)
Operating Humidity: 0%"95% noncondensing
