Overview of The Trap Relay 64

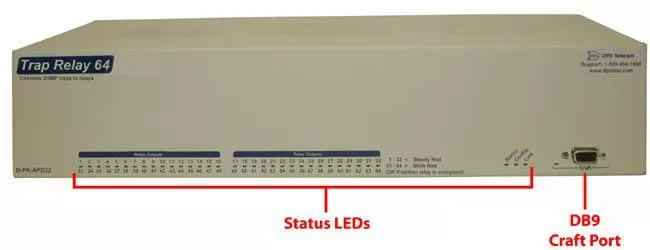

Trap Relay with 64 control relays
Mediate and process inbound SNMP traps with the Trap Relay 64.

The Trap Relay provides a cost-effective and critical way to link inbound SNMP traps with a relay output. This device is the first of its kind from DPS. Typically, SNMP traps are forwarded from an RTU to an SNMP Manager. This device will receive inbound SNMP traps and use this information to operate or release one of the device's control relays. Traps received by the Trap Relay can be identified by either IP address, Trap ID, or by an additional variable binding.

With the 64 relays, you'll be able to remotely control any device that you normally operate with a button or a switch. The relays will latch or release a contact closure based on the commands it receives. Relays are perfect for turning on small devices, opening doors, interfacing to legacy alarm systems, operating visual/audible notification systems, and rebooting jammed equipment.

The Trap Relay RTUs can be operated in one of two modes:

  1. Granular mode

    Allows the user to configure each relay to operate or release based on the enterprise, generic-trap, and specific-trap information of a SNMP v1 trap or the trap OID of a SNMP v2c trap.

  2. Cisco-VMS mode

    The unit will ignore each relay's SNMP trap configuration and will momentarily operate relays when it receivers either one of several VMS 6.3 SNMP Traps. A relay in Cisco-VMS mode will only operate if its description matches the VMS trap's mediaStreamName value.

If you have a specific device you want the Trap Relay to interface with, contact the engineers at DPS to have a specific mode created just for you.


Trap 48RA

Trap Relay with 48 control relays
Trap 48RA - Medium Capacity Option.

The Trap 48RA is a device that operates up to 48 relays and 16 audio outputs using received SNMP trap information. Currently there are two supported trap processing modes of operation. Granular mode allows the user to configure each relay to operate or release based on the enterprise, generic-trap, and specific-trap information of a SNMP v1 trap or the trap OID of a SNMP v2c trap. Each SNMP trap can also be defined by an optional variable binding. In Cisco-VMS mode, the unit will ignore each relay's SNMP trap configuration and will momentarily operate relays when it receives either a mediaStreamDeviceUnreachable, mediaStreamConnectionLoss, or mediaStreamConfigFailure VMS 6.3 SNMP Trap. A relay in Cisco-VMS mode will only operate if its description matches the VMS trap's mediaStreamName value. This telco-grade remote is housed in a durable aluminum chassis that will require the use of two standard rack units for mounting.

Features of the Trap Relay...

Screenshots

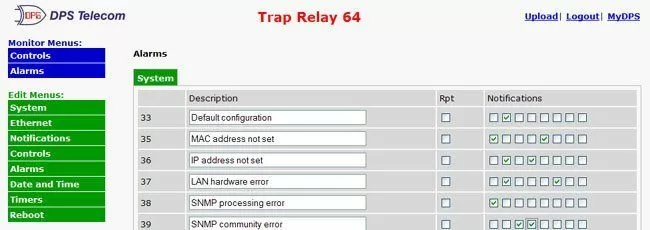

Trap Relay 64 Edit Notifications screenshot
Control alarms and notifications for the Trap Relay 64 through the intuitive and easy-to-use graphical user interface (GUI). The interface is web-based, so no install is required. Just enter the IP address of your TR64 into your web browser.

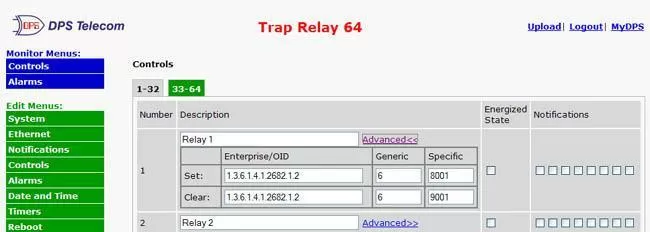

Trap Relay 64 Edit Controls screenshot
With the Trap Relay 64's web-based GUI, you can manage your control relays with ease. This step is only needed when adding/changing new devices. You'll give each relay a label for reference.

Applications

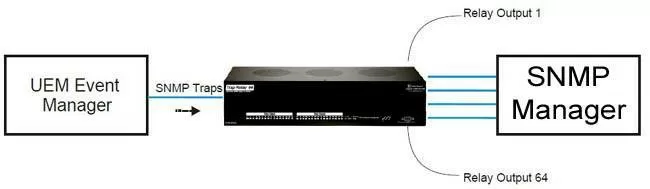

Trap Relay 64
The Trap Relay 64 features 64 control relays and is capable of processing and mediating SNMP traps. This brings SNMP equipment into virtually any other monitoring system. Conversion to control relays also provides a secure bridge for military and other high-security applications.

Trap Processing

The Trap Relay products from DPS map SNMP traps to relay outputs. This is a great solution for improved coverage of SNMP at remote sites where LAN is unavailable.

Get to Know a Newer RTU Model: The NetGuardian 832 G5

If you're looking to equip your remote sites with monitoring technology that will keep up with your network, you don't have to look any further. The NetGuardian 832A G5 boasts several enhancements from previous NetGuardian models - which include advanced hardware, increased processing speed, and enhanced security options.

The NetGuardian 832A comes with 8 control relays, 8 analog inputs, and 32 discrete alarm inputs. These are handy for monitoring all of your important discrete and analog alarm points. The RTU is also packed with 32 ping alarm inputs and dual NICs. You also get a 10/100 switch (which is optional) and your choice of power-input voltages. This allows you to customize your RTU to meet the needs of your remote sites.
