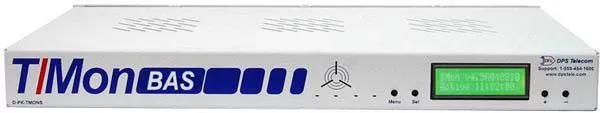

T/Mon BAS: Centralized Building Access Control in 1 RU

T/Mon BAS for the Building Access System
T/Mon BAS: Real-time visibility and control of electronic door access.

T/Mon BAS: Modern, efficient electronic door access that you control...

The new T/Mon BAS (Building Access System) gives you centralized, electronic control over your doors. T/Mon BAS is a variant of the T/Mon Remote Alarm Monitoring System. While a standard T/Mon manages both door access and alarms from network equipment, T/Mon BAS is focused purely on building access control. If, in addition to doors, you also have a widespread network of unmanned remote sites that should be monitored and controlled, visit the T/Mon LNX product page instead.

 T/Mon Building Access System (BAS)
The T/Mon Building Access System gives network alarm managers the ability to control and regulate door entry access, without the network monitoring capabilities you don't need.

Cost-effective and easy to install, T/Mon BAS puts high-quality network alarm monitoring within the reach of any company.

You can use T/Mon BAS to:

  • Grant individual door access rights for up to 1300 users.
  • View and control access from all of your facilities on one screen
  • Monitor unauthorized door access attempts and intrusion alarms
  • Remotely "buzz-in" site visitors from your central office
  • Maintain access history logs for review after an incident

T/Mon BAS gives you the advanced access control capabilities of T/Mon LNX, without network alarm monitoring functions you may not need.

Applications

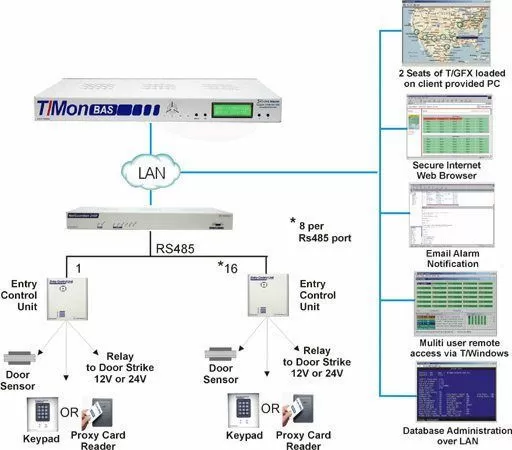

View Top Level Master Application
Top Level Master: The T/Mon BAS controls all of your doors on one uniform platform. You can monitor and control doors from anywhere - your office, your desktop or laptop PC, a Web browser, your e-mail, or your cell phone.

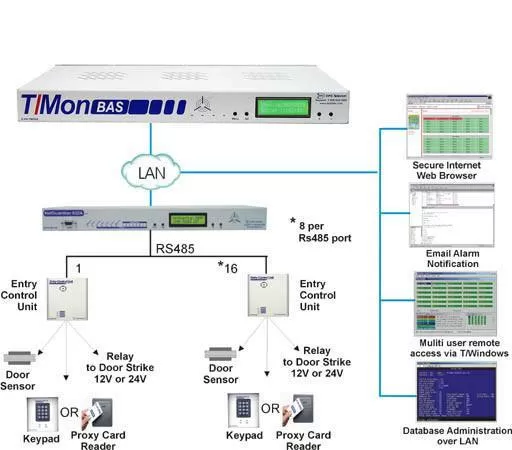

As shown above, T/Mon BAS manages multiple local door controllers (usually via LAN). Each of these local controllers can handle multiple doors (for sites that have more than one entrance). The database of user permissions is created within T/Mon BAS, then automatically distributed down to each local controller. When a user waves a proximity card or enters a keycode, the local controller grants or denies access based on that users unique permissions, which may be restricted to certain dates and times.

For more detail about this building access application, visit the Building Access System product page. A different T/Mon hardware model may be shown on that page, but the T/Mon BAS is virtually identical in a building access application. Other T/Mon models simply have additional capabilities beyond access control.

Ordering Options

DPS Telecom makes a number of devices that fit the role of the local controller. Whether you're looking for a high-capacity door controller, an RTU with building-access functionality, or a single entry control unit, DPS makes a local control device to fit your building access needs.



Device Doors
Supported
Discretes Analogs Controls Serial Ports Protocols Transport
Building Access 32
Building Access 32
32 0 0 0 0 *Bldg.
Access
LAN,
Serial
NetGuardian 832A G5
NetGuardian
832A G5
8-16 32-176 8-32 8-32 8 T/Mon,
SNMP
(v1, v2c,
and v3)
LAN,
Wireless,
Dial,
Serial
202
NetGuardian 864A
NetGuardian
864A
8-16 64-256 8-32 8-32 8 T/Mon,
SNMP
(v1, v2c,
and v3)
LAN,
Wireless,
Dial,
Serial
202
NetGuardian 420
NetGuardian
420
8 20 Up to 6 4 4 T/Mon,
SNMP
(v1, v2c,
and v3)
LAN,
Dial,
Serial
202
NetGuardian 216F
NetGuardian
216F
8 16 8 2 1 T/Mon,
SNMP
(v1, v2c,
and v3),
TAP
LAN,
Serial
ECU LAN
ECU LAN
1 0 0 0 0 *Bldg
Access
LAN,
Serial

RTU FAQ
Ordering Options and Part Numbers:

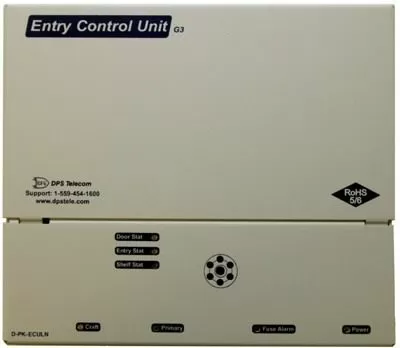

Entry Control Unit Entry Control Unit: D-PK-ECUG2
The Entry Control Unit (ECU) interfaces between the local controller (the NetGuardian or building access control device) and the keypad or proxy reader at your door. The ECU supports keypads, proxy readers, dual-proxy readers for time-clocking purposes, magnetic locks, and door strikes.
BAS Keypad: D-PK-KEYPD
Proxy Card Proxy Card Reader: D-PK-PROXI
Door Locks New! Electromagnetic Door Locks: D-PK-EMLCK

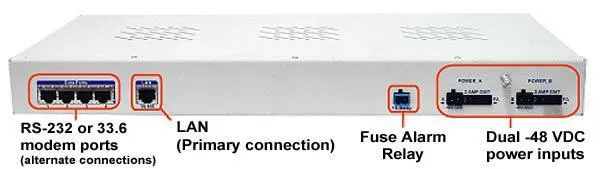

T/Mon BAS Back Panel
The 1RU T/Mon BAS fits into any 19" or 23" rack, in any telco or server room environment, freeing more space for revenue-generating equipment.
Full Specifications
Standard Input Protocols: DCP, DCPf, DCPx
Standard Output Protocols: DCP, DCPf, DCPx
Capacity : 1300 users, 64 door-control devices (each capable of controlling many doors)
Dimensions: 1.75" H (1RU) x 17" W x 12 "D
(4.45 cm x 43.18 cm x 30.48 cm)
Weight 10 lbs (4.54 Kg)
Mounting: 19" or 23" rack
Power Input: Dual -48 VDC
Dual -24 VDC (optional)
Current Draw 500 mA
Fuse: Two 2 Amp GMT
Serial Ports: 4 RJ45 Connectors
Serial Port Interface: RS-232 / 33.6 Modems vary on configuration
LAN Interface: 10/100 BaseT
Processor: 400 MHz
Visual Display: Front panel LCD
Unit Controls: 4 LCD menu control buttons
Hardware Warranty: 2 years
Operating Temperature: 41-90 degrees F (5 to 35 degrees C)
Operating Humidity: 0%-95% noncondensing
