Harris NetBoss Master and NetGuardian 216 RTU

Harris NetBoss Master and NetGuardian 216 RTU
Harris NetBoss Master and NetGuardian 216 RTU

Equipment Used:

How This Application Works:

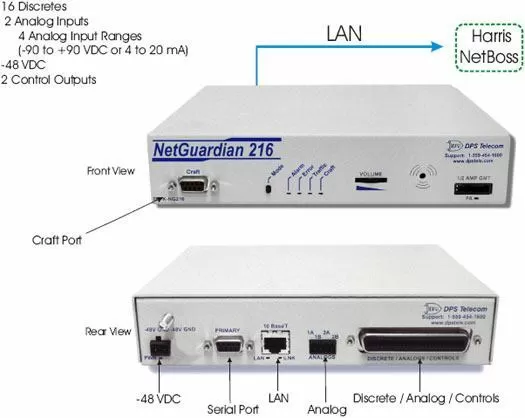

This proposal features a -48VDC to 220VAC Wall Transformer, NetGuardian 216's, 66- Blocks and 3-feet 50-pin male Amphenol to Male Amphenol cables.

The NetGuardian 216 comes equipped with 16 discrete alarm inputs, 2 analog alarm inputs, and 2 control relay outputs. The discrete alarms are items such as door alarms, equipment alarms and other ON/OFF events. The discrete alarms are "software reversible" to support both N/O and N/C alarm wiring. The NetGuardian 216's 2 analog inputs can be used for measuring such critical events as temperature, voltage and battery. We also have a line of sensors which can be used with the NetGuardian 216 and can be included upon your request.

The NetGuardian 216 will provide complete coverage and control of your smaller remote sites with easy installation and configuration. It will report alarms via SNMP to your Harris NetBoss master station. The reach-through serial port on the NG216 provides you the ability to access a remote serial device via LAN (a.k.a. terminal server).

The NetGuardian 216 also features a real-time clock, so the NetGuardian 216 clock maintains the current date and time during a power failure. Each time an alarm occurs, a time-date stamp will be included in the SNMP/DCPx trap. Also, the NetGuardian 216 comes a with a free, easy to use, Windows based (T/NG216) utility for configuration, monitoring and diagnostic functions.

The NetGuardian 216 can mount in any 19" or 23" rack and occupies only one rack unit of space. The standard NetGuardian 216 has rear-panel amphenol connectors for alarms, LAN connections for transport, and a RS232 serial port.

DPS offers FREE LIFETIME SOFTWARE upgrades, which you can easily download to your NetGuardian via LAN to make sure you have all the latest & greatest benefits that have been developed
