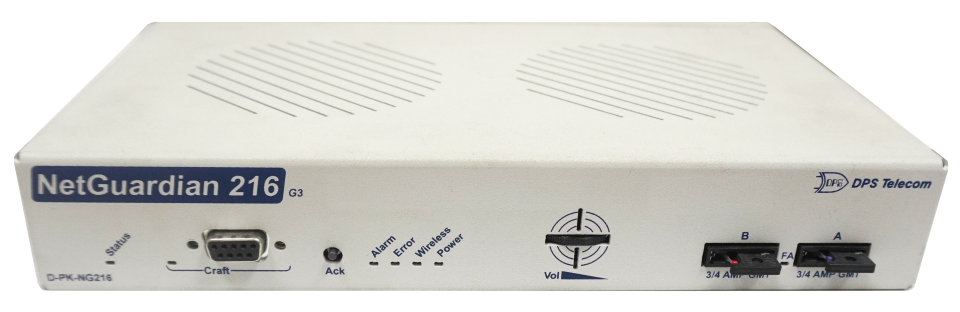

NetGuardian 216 G3

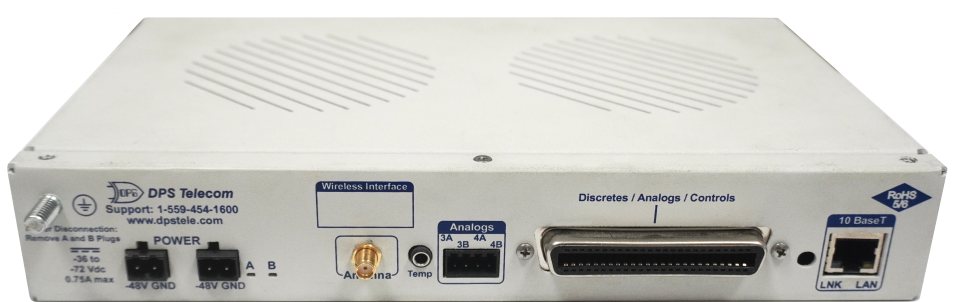

/products/rtu/d-pk-ng216/media/back-panel-960.webp
/products/rtu/d-pk-ng216/media/back-panel-960.webp
*Click an image to enlarge

The NetGuardian 216 G3 RTU provides advanced network reliability management in a compact, cost-effective unit. It provides exactly the right capacity to manage your small and medium sites and reports alarms using SNMP or DCP over your existing IP network.


Key Features

  • 2 general purpose analog inputs OR 8 total analogs (battery A&B, internal & external temperature, 4 general purpose)
  • 2 control outputs
  • 16 (reversible) alarm points

As the most compact member of the NetGuardian family, the NetGuardian 216 G3 offers an easy, cost-effective way to monitor your small sites.

The NetGuardian 216 G3 comes with 16 discrete alarm inputs, 2 or 8 analog inputs, and 2 control relay outputs. The discrete alarms can be used for items such as door alarms, equipment alarms, and other ON/OFF events. The analog alarms are used for measuring such critical events as temperature and voltage. The controls are a convenient and time-efficient way of remotely switching equipment in the field via the NetGuardian’s internal relays.

The NetGuardian 216 G3 reports alarms via SNMP, DCP, DCPf, or DCPx over either UDP or TCP and can be used with your T/Mon master station or an SNMP manager.

The reach-through serial port provides you with the ability to access a remote serial device via LAN using a terminal server. Now you also have the option of ordering your unit with temperature sensors and/or a wireless modem. With the built-in Real Time Clock, the NetGuardian will time/date stamp incoming SNMP traps. It will also remember the current date and time settings during power failures.

Form Factor

  • Height: 1.72"
  • Width: 10.48"
  • Depth: 6.63"
  • Mounting:
  • Weight: 1.5 lbs

Core Features

  • Analog Alarms: 2
  • Control Relays: 2
  • Discrete Alarms: 16
  • Power Supply: -48Vdc
  • Rack Ears: Both
  • RJ45 connections: 32
  • Web Browser Interface

Operating Conditions

  • Max. Voltage: 60VDC / 120VAC
  • Operating Humidity: 0% -95% non-condensing
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Analog Alarms: 8
  • Mounting: Wall mount
  • NIC: 10/100BaseT
  • Power Input: Dual, Single
  • Power Supply: +24Vdc, -24Vdc
  • Rack Ears: 19-inch, 23-inch
  • RoHS: 5/6
  • RTC
  • Serial Port: RS232
No additional software required.

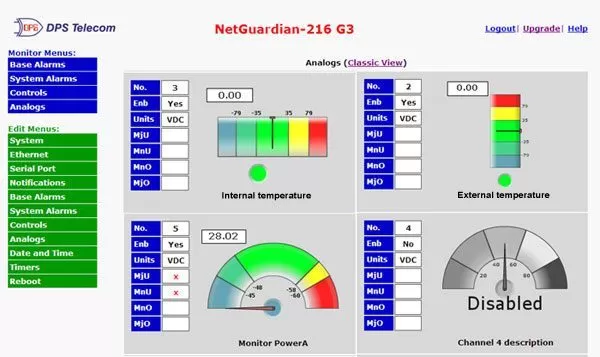

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
