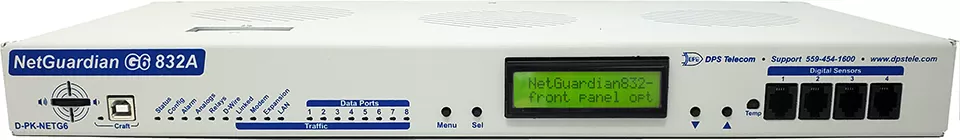

NetGuardian G6 832A

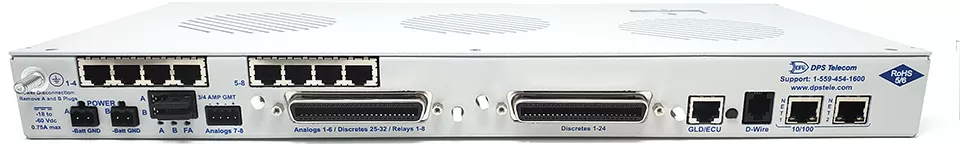

/products/rtu/d-pk-ng832/media/back-panel-960.webp
/products/rtu/d-pk-ng832/media/back-panel-960.webp
*Click an image to enlarge

The NetGuardian G6 832A is a powerful, compact LAN-based alarm collector that provides network managers with remote visibility of their physical and IP network elements.


Key Features


The NetGuardian G6 832A is a powerful, compact LAN-based alarm collector that provides network managers with remote visibility of their IP network elements. With 32 ping alarms, 32 discrete alarms, 8 analog inputs, and 8 controls, this versatile unit is an ideal network monitoring solution for medium and large sites.

In addition to network and environmental alarms and controls, the NetGuardian also acts as a terminal server for 8 serial ports, giving you a convenient path to legacy devices - or even a backup path to more modern gear.

Alarms can be reported via SNMP (v1-v3) or to the T/Mon alarm master. The integrated LCD screen and speaker (with volume knob) make it easy to check alarms locally. The web interface is fast and secure (TLS v1.2).

The NetGuardian 832A is easy to install. Alarm wiring can be terminated to the 50-pin amphenol connectors using standard 66 blocks, or with optional wire-wrap/pluggable back panels. The unit mounts quickly in either 19" or 23" equipment racks while occupying only one rack unit of space.

Additional options include a built-in sensor power supply, dual power feeds, integrated temperature and battery sensors, and external temperature sensor port.

The versatility, capacity, and reliability of the NetGuardian 832A have made it a trusted RTU for over 20 years.

Form Factor

  • Height: 1.75"
  • Width: 17"
  • Depth: 12.75"
  • Mounting:
  • Weight: 4.3 lbs

Core Features

  • D-Wire Port 2: D.WIRE2
  • Data Port 1: RS-232
  • Data Port 2: RS-232

Operating Conditions

Optional Features

  • D-Wire Front: Front 1 Port, Front 2 Port, Front 3 Port, Front 4 Port
  • D-Wire Port 1: D.WIRE1
  • D-Wire Port 3: D.WIRE3
  • Data Port 1: DockPad 202 (Bell), DockPad 202 (Hi Z), DockPad 202 (v.23), Modem 33.6, RS-485
  • Data Port 2: DockPad 202 (Bell), DockPad 202 (Hi Z), DockPad 202 (v.23), Modem 33.6, RS-485
  • Power Supply: +12/+24, +24Vdc, -24/48Vdc (wide range), -48Vdc, 110VAC
  • RTC
No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
