CellVoice 4: Overview

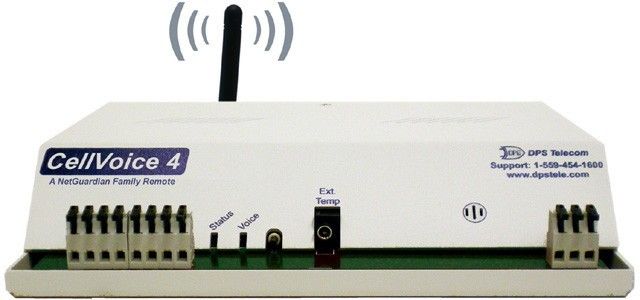

The Cell Voice 4 (CV4) is a Wireless Triple Threat for your small sites, featuring custom voice alerts, SMS messaging to your cellular phone or SNMP master station, and email notifications (via SMS).

The Cell Voice 4 provides a low cost, cellular solution to effectively monitor your smaller sites.

The unit's cellular call-out feature sends custom voice notifications for the unit's alarm inputs, providing clear alarm descriptions you can hear. Now when an alarm wakes you in the middle of the night, you won't have to struggle to adjust your eyes and read the screen on your phone. You'll be able to hear and know immediately what's wrong.

In addition to custom cellular voice notifications, the Cell Voice 4 also sends alarm notifications via SMS. With DPS Telecom's new SMS reporting technology, the CellVoice series RTUs can send SMS alarm notifications direct to your phone and your SNMP manager via the new SMS Receiver). The SMS Receiver mediates SMS messages to SNMP and forwards alarms to your SNMP manager.

With previous-generation cellular gear, you would've had to pay for a third party data provider and punch a hole in your firewall to get alarms over CDMA/GSM wireless channels. With DPS Telecom's new SMS reporting technology, you can report alarms over SMS without any of the cellular hassle you used to have.

With the CV4, you'll save time and money by remotely acknowledging alarms from the field, either by calling in and using the CV4's voice menu or by clicking a link your emailed notifications (also sent via SMS).

All of this, based on the time-tested NetGuardian design, makes the CV4 the perfect remote to monitor your small sites.

CellVoice 4 Features:

• Wireless Triple Threat, sending:
  • Custom Cellular Voice Alerts
  • SMS Alarm Notifications to your phone and SNMP manager (with SMS Receiver)
  • Email Notifications (via SMS)
• SNMP and email alerts - notify up to 8 people per alarm point
• Up to 4 discrete alarms - monitor your digital inputs
• 1 Optional Form C Relay
• 1 integrated analog temperature sensor for measuring the CV4's environment
• 1 External analog temperature sensor (Optional)
• Convenient latching terminations - no screwdriver required
• 30 Day, No-Risk Money-Back Guarantee
• Dimensions: 1.75" H x 8.13" W x 7.13" D
• Wall or Rack Mountable

For further information regarding SMS Reporting:

Wireless GSM/CDMA Knowledge Base

CellVoice 4 Overview Video

On this episode of DPS TV, Andrew introduces the CellVoice 16 and CellVoice 4. Hear Mark Carberry, the Director of Engineering, explain some of the features regarding these 2 units. Hear about their configuration options. Contact DPS to find out more about these 2 units.

CellVoice 4 Screenshots

Monitor your CellVoice 4's discrete alarms from any web browser. When you have LAN access to the CellVoice, you can check to make sure that everything is running smoothly at your site.

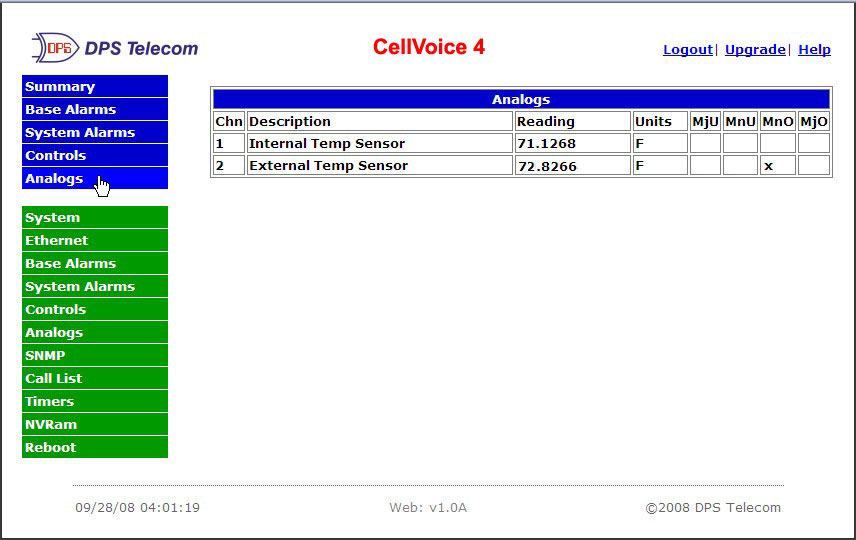

The CellVoice 4's web interface allows you to monitor your analogs and set controls from any computer with internet access, so you can always keep an eye on your site.

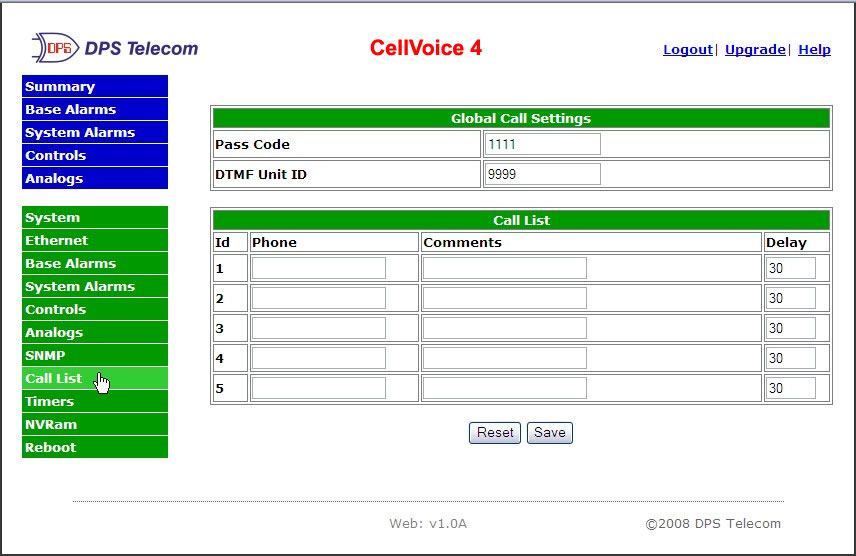

Set your call list from anywhere, so you can be sure that if something goes wrong, the right people hear about it.
