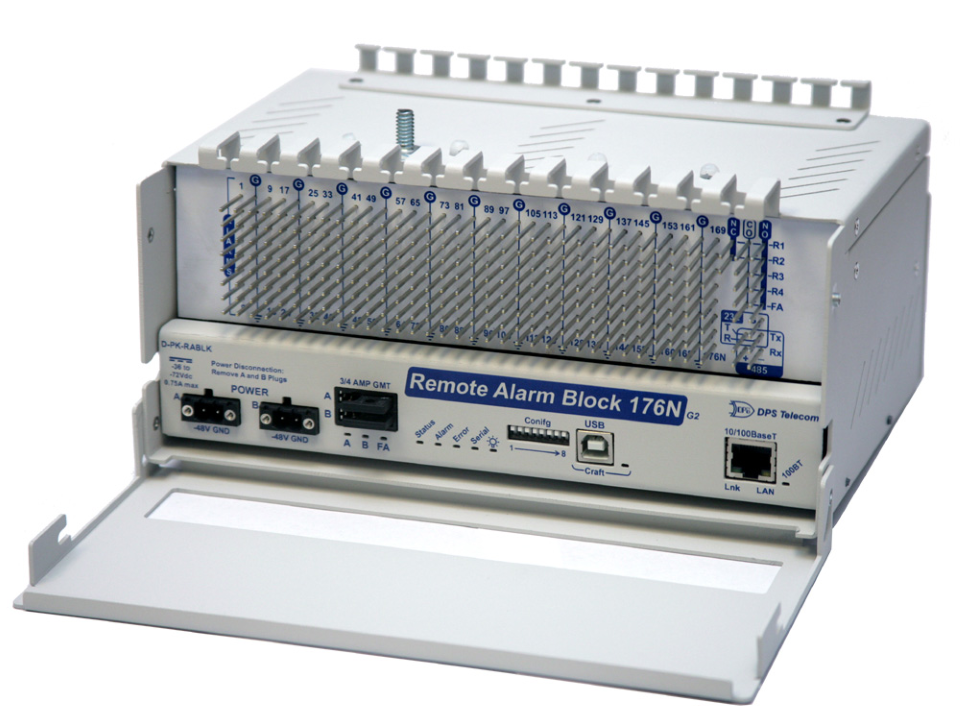

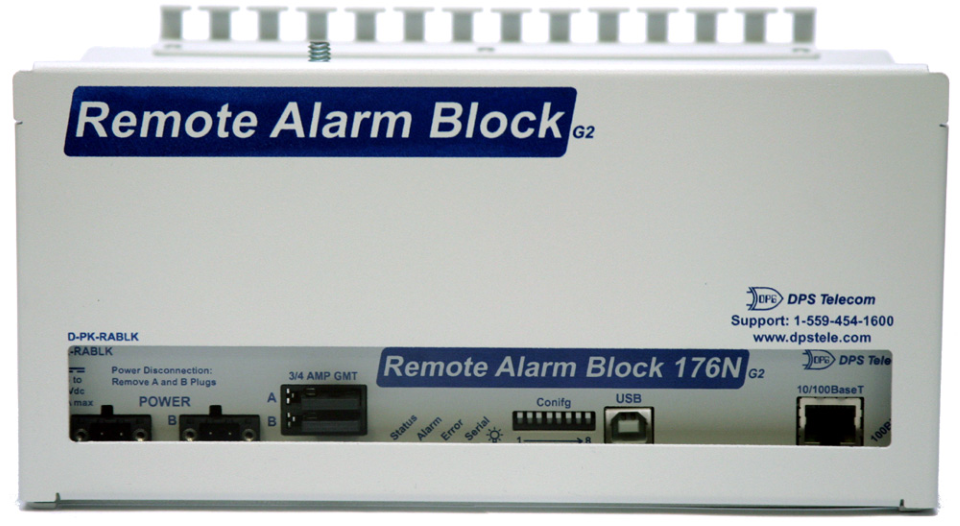

Remote Alarm Block 176N G2

/products/rtu/d-pk-rablk/media/front-angled-960.webp
/products/rtu/d-pk-rablk/media/front-angled-960.webp
*Click an image to enlarge

The Remote Alarm Block 176N G2 is an extremely compact alarm collection remote with 176 alarm points and 4 controls, combining the functions of an alarm block and an RTU in the smallest possible space.

Key Features

  • 4 control relays
  • 176 discrete alarm inputs
  • Secure web browser interface for convenient configuration and monitoring

The Remote Alarm Block 176 G2 is a compact, high-capacity, SNMP/DCP alarm collection remote. This device is ideal for applications where many alarm points are routed through a distribution frame, providing up to 176 alarm points and 4 controls.

Remote Alarm Block 176 G2 main benefits:

  • 176 alarm inputs for dense alarm collection in the smallest possible space.
  • Standard wire wrap terminations.
  • Dual power inputs.
  • Sends Email Notifications over LAN.
  • Supports SNMP v1, v2c, and v3.
  • Report alarms via 10/100BaseT LAN to an SNMP manager or T/Mon.
  • Secure web browser interface for convenient configuration and monitoring.
  • Real time clock for accurate date/time stamp.
  • Mounts on Rack or Wall.
  • Backed by DPS Telecom Quality, Service and Training.

Form Factor

  • Height: 4.4"
  • Width: 6.4"
  • Depth: 9.2"
  • Mounting:
  • Weight: 3.5 lbs

Core Features

  • Control Relays: 4
  • Craft port: 1 serial port
  • Discrete Alarms: 176
  • Fuse: 3/4 Amp GMT
  • LED status indicators
  • NIC: 10/100BaseT
  • Ping Targets: 16
  • Power Input: Dual
  • Power Supply: -48Vdc
  • RJ45 connections: 32
  • Web Browser Interface

Operating Conditions

  • Humidity: 0-95% NC
  • Temperature: 32 to 140F (0 to 60C)

Optional Features

  • Power Supply: +24/48Vdc (wide range)
  • Rack Ears: 19-inch, 23-inch
  • Serial Port: RS232, RS485

Product Sheet

Hardware/Installation Manual

No additional software required.

Use the built-in web interface for configuration. Monitor via web interface, your SNMP manager, or a T/Mon master station.
